Universal Ball & Socket Shields

Universal Chip Shields

BUY MACHINE SHIELDS ONLINE AT APPLESAFETY.COM!

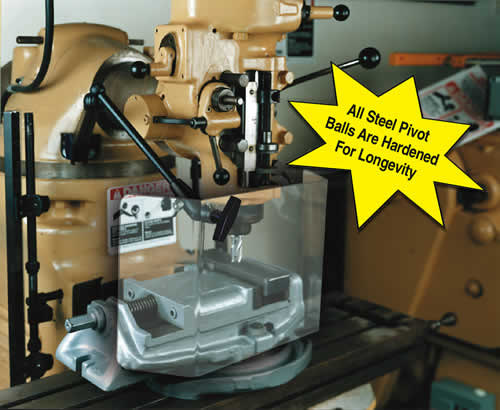

A variety of these quality-constructed, very versatile chip shields are available. They are ideal for mills, drills, grinders, band saws, or similar equipment including woodworking machines. The shield places a barrier between operators or other employees in the area and the flying chips (swarf), sparks, and coolant generated from the tool.

Universal Machine Shields

The shields are furnished with heavy universal ball and socket arms to provide simple movement and adjustment. Large polypropylene plastic handles are used for positioning and locking. Arms mount easily to the frame or column of the machine and include standard mounting hardware.

The shields offered are made of high-impact-resistant, 3/16"-thick clear polycarbonate, selected for its toughness under impact to protect the operator. Each shield, except for the flat shield, has a hole in the left and right corners so the arm can be conveniently mounted on either side of the machine. Special size shields are available upon request.

The universal arm can be furnished in the following sizes: 21", 31", or 44".

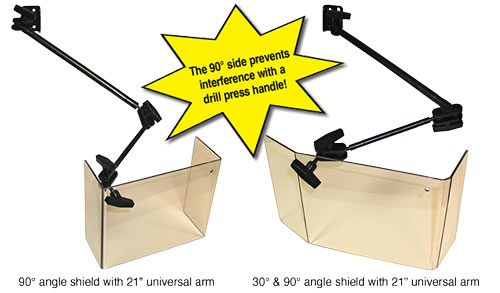

The shield can be furnished with side panels formed at 30°, 90°, or 30° and 90° angles. It is also available in a flat or concave shape

Universal Chip Shield Options

BUY MACHINE SHIELDS ONLINE AT APPLESAFETY.COM!

Ordering Information

Part #		Description
KYL-104		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 6" X 8" FLAT SHIELD
KYL-105		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 6" X 8" FLAT SHIELD
KYL-106		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 6" X 8" FLAT SHIELD
KYL-107		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 10" X 12" FLAT SHIELD
KYL-108		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 10" X 12" FLAT SHIELD
KYL-109		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 10" X 12" FLAT SHIELD
KYL-110		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 30° SHIELD (7" FRONT)
KYL-111		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 30° SHIELD (7" FRONT)
KYL-112		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 30° SHIELD (7" FRONT)
KYL-113		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 30° SHIELD (10 3/8" FRONT)
KYL-114		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 30° SHIELD (10 3/8" FRONT)
KYL-115		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 30° SHIELD (10 3/8" FRONT)
KYL-116		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 90° SHIELD
KYL-117		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 90° SHIELD
KYL-118		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 90° SHIELD
KYL-119		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 8" X 10" CONCAVE SHIELD
KYL-120		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 8" X 10" CONCAVE SHIELD
KYL-121		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 8" X 10" CONCAVE SHIELD
KYL-122		UNIVERSAL CHIP SHIELD ASSY W/21" ARM & 10" X 12" CONCAVE SHIELD
KYL-123		UNIVERSAL CHIP SHIELD ASSY W/31" ARM & 10" X 12" CONCAVE SHIELD
KYL-124		UNIVERSAL CHIP SHIELD ASSY W/44" ARM & 10" X 12" CONCAVE SHIELD
KYL-127		UNIVERSAL CHIP SHIELD ASSY W/21" ARM AND 30° & 90° SHIELD (10 3/8" FRONT)
KYL-128		UNIVERSAL CHIP SHIELD ASSY W/31" ARM AND 30° & 90° SHIELD (10 3/8" FRONT)
KYL-129		UNIVERSAL CHIP SHIELD ASSY W/44" ARM AND 30° & 90° SHIELD (10 3/8" FRONT)

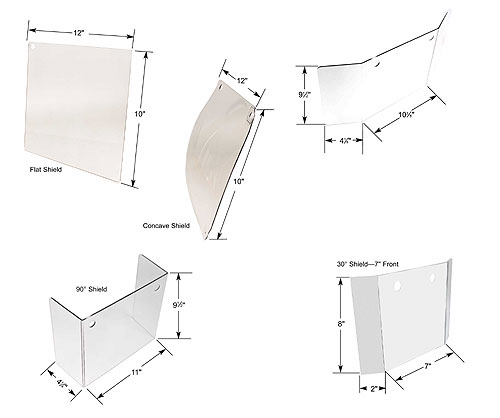

Replacement Shields

Replacement Shields Only

Part #		Description
KYL-078		REPLACEMENT SHIELD 6" X 8" FLAT FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-077		REPLACEMENT SHIELD 10" X 12" FLAT FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-012		REPLACEMENT SHIELD W/30° ANGLE & 7" FRONT
KYL-017		REPLACEMENT SHIELD W/30° ANGLE & 10 3/8" FRONT
KYL-018		REPLACEMENT SHIELD W/90° ANGLE
KYL-080		REPLACEMENT SHIELD 8" X 10" CONCAVE FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-081		REPLACEMENT SHIELD 10" X 12" CONCAVE FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-126		REPLACEMENT SHIELD W/30° & 90° ANGLE & 10 3/8" FRONT
