The shields are furnished with heavy universal ball and socket arms to provide simple movement and adjustment. Large polypropylene plastic handles are used for positioning and locking. Arms mount easily to the frame or column of the machine and include standard mounting hardware.
More Information

Flexible Arm Shields

These high-quality flexible-arm shields can be used on lathes, drills, small mills, grinders, band saws, or similar equipment including woodworking machines. The heavy-duty flexible arms are made of spring steel and are covered with vinyl to protect them from grease, oil, and contaminants that would weaken their holding power. They offer virtually unlimited adjustment possibilities and long-term holding power.

The transparent portion of these shields is constructed of high-impact-resistant, 3/16"-thick clear polycarbonate. The shield places a barrier between an operator and the flying chips (swarf), sparks, and coolant generated at the point of operation. Special shield sizes are available up to 12" x 12"; please contact the factory.
More Information

Drill Press Shields

These sturdy safety chip shields provide protection from flying chips, coolant, and rotating parts. They are usually applied to small drill presses, mills, etc., and can be magnetically or permanently mounted. The shield can be attached to any ferrous surface on the machine by an 80-lb. pull, 3 1/4" diameter magnetic base. If a ferrous surface is not available, a 3 1/4" x 5 1/4" mounting plate is also furnished with each shield.

The impact-resistant, 3/16"-thick clear polycarbonate shield provides visibility to the point of operation. It adjusts and locks in any vertical position.
More Information

Clear Lathe Chuck Shields

A Clear Concept in Shielding Lathes!
These quality-constructed lathe chuck shields have a tough semicircular shape made from high-impact-resistant transparent polycarbonate. The shields themselves are attached to a 1" zinc-plated extension tube. This tube is inserted into a mounting bracket. The shield assembly does not include the mounting bracket.

The semicircular shield covers half the circumference of the lathe chuck because it is mounted an equal distance from the chuck center.

Access to the chuck and workpiece is quick and easy. The shield is lifted up and out of the way for the operator.
More Information

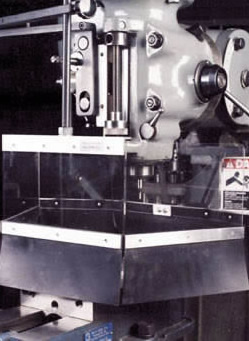

Chip Shields for Bridgeport Mills

These specially designed, quality-constructed shields are ideal for Bridgeport mills. They place a barrier between flying chips (swarf), sparks, coolant from the machine, and the operators or other employees in the area. They can easily be moved in or out of position which provides for quick tool and part changes.

These shields are quick and easy to install. They attach directly to existing head machine bolts so they do not require drilling or tapping.
